A-A-50506A
1 December 1982
SUPERSEDING
A-A-50506
18 January 1982
COMMERCIAL ITEM DISCRIPTION
FAN, TUBEAXIAL, MINIATURE, FOR COOLING ELECTRONIC EQUIPMENT
This commercial item description (CID) is approved for use by the Naval Electronic Systems.
Command, Department of the Navy, and is available for use by all Departments and Agencies of the Department of Defense.
Salient characteristics:
Size: 4 11/16 x 4 11/16 x 1 1/2 inches, self contained (includes capacitor if required).
Ratings: 260 (max)/210(max) milliamperes (running), 380(max)/340 (max) ma (lock rotor) 115 volts, alternating current, 1 phase, 50/60 hertz, 18 watts maximum, single speed fully enclosed rotor 100 CFM minimum at 0.0 static pressure at .075.
Bearings: Class A - Bearing, sleeve, self-lubricating
Class 8 - Bearing, bal1 annular, shielded, permanently lubricated
Materials: Manufacturer standard commercial design per certification.
Ambient Temperature at Full Rated Power: (-) 15°c to 72° c

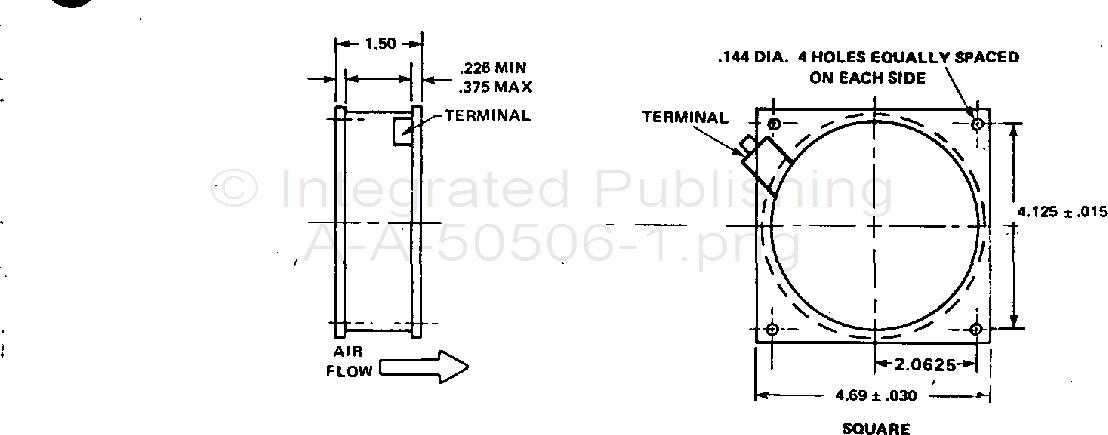

Electrical Connection: Solder Type or Screw Type terminals with terminal location as shown in figure. Type A -
Size 1 - Terminal plug-in (solderable) (see Figure 3).
Size 2 - Terminal plug-in (solderable) (see Figure 3)
Type B - Screw terminal
Shall conform to the Underwriters Laboratories, Inc., (UL) Standard 45.
