MIL-PRF-18953 Fans, Vaneaxial And Tubeaxial, Ventilation And Air Conditioning, Naval ShipboardThis specification covers fixed vaneaxial and tubeaxial fans for Naval shipboard use in ventilation and air conditioning systems.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16


MIL-PRF-18953C(SH)
INLET END VIEW
Bolt hole diameter (C) tolerance shall be ±  1/64 inch, all other tolerances shall be ±  1/16 inch.
NOTES:
1. All motor data is approximate.
2. Weight for fan with 65 °C (149 °F) ambient motor.
3. All weights are approximate.
4. Dimensions "B" and "D" for information only.

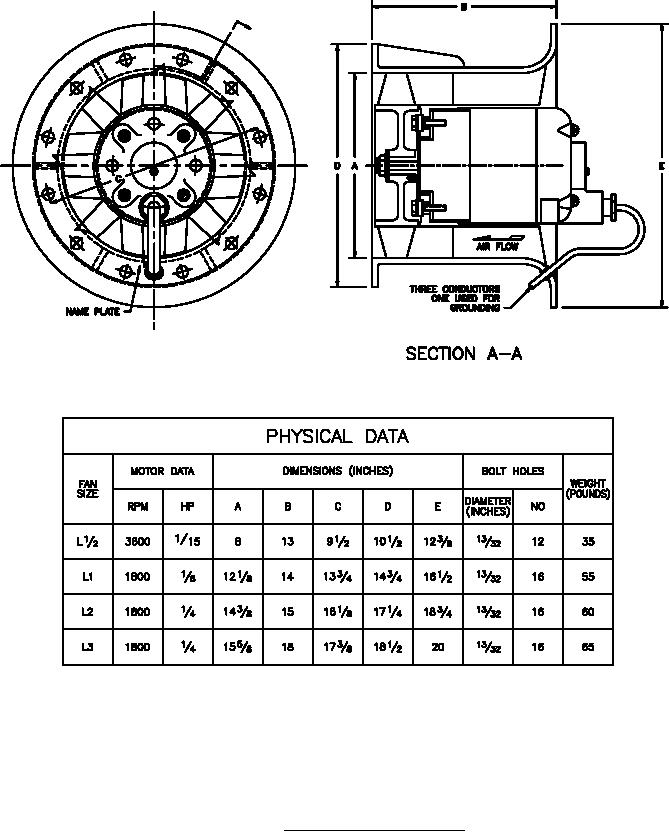

FIGURE 2. Tubeaxial fan ­ interface data.
